Raw materials of fish meal production plant
The 24T/D fish meal plant uses rainbow trout and its waste as raw material. Rainbow trout is a fish with quite high fat and oil content. While we make fish meal from it, we can also sort out the oil, so that we can get more value.
In the process of making fish meal, we first crush the raw material to make it finer in size and easier to steam. This 5T/24h small compact fish meal plant, as the name implies, can process 5000kg of raw materials in 24 hours. And We can obtain about 1000kg-1200kg of finished fish meal. The fish meal yield is between 20% – 25%, and the oil yield is between 5% – 8% depending on the raw material.

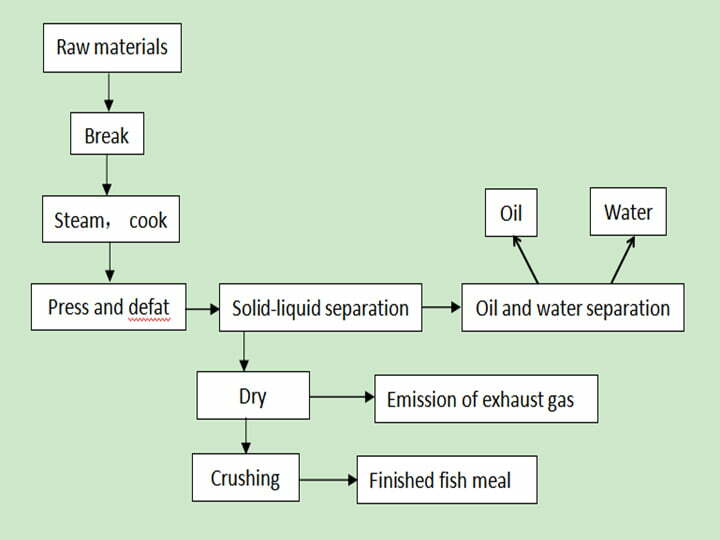

Process flow of fish meal processing
- Crush the raw materials with crusher to refine the size of raw materials for steaming.
- To ensure the quality of subsequent product processing, we can use the cooking machine to cook, disinfect,and sterilize the crushed materials with high temperature.
- After high-temperature cooking, use the fish squeezing machine to further press and defat the cooked materials.
- Separate the pressed materials into solid and liquid. Then, the liquid will be passed through a three-phase centrifuge for oil-water separation, and water and oil can be obtained.
- Dry The solid and the solid powder obtained after pressing through the dryer, and then further crushed them. We can finally get the finished fish meal.
- In the drying process, it may produce exhaust gas. Use the cyclone dust collector and induced draft fan to deodorize and purify exhaust gases , and then discharge the exhaust gases into the air, so ao to protect the environment.

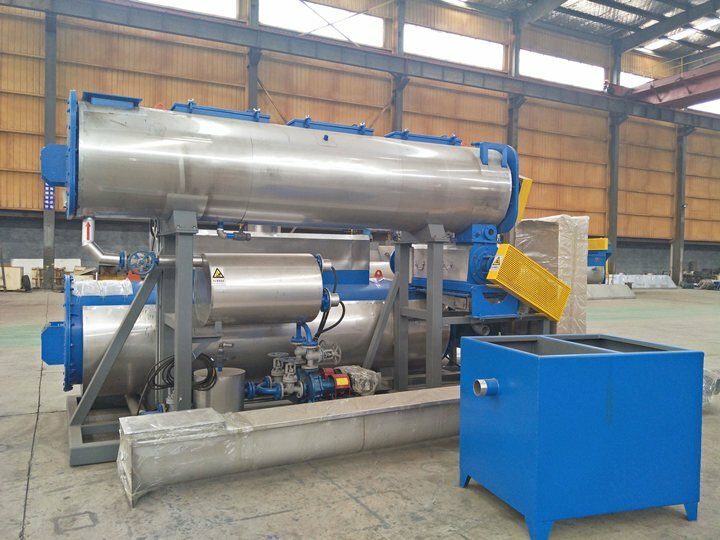

Specification of fish meal production equipment
| Fish meal machine | Main equipment and parameters | QTY | Power（KW） |
 Fresh fish crusher | Specification: length, width and height (1200X600X1000mm) Power： Motor P=5.5kw The shell is made of stainless steel and the tool is made of 40Cr. Crushed raw material capacity: 500kg-1000kg/h. The upper part is equipped with a collecting hopper, made of SUS304 stainless steel. | 1 | 5.5 |
 screw conveyor | φ250×4500 The shell is all made of SUS304 stainless steel, δ=3mm, the blade is made of SUS304 stainless steel, δ=4mm; the spindle is made of Φ76X10 seamless steel pipe, material carbon steel. Path： Crusher-cooker Exterior size: 5.0×0.3×0.3m. | 1 | 2.2 Variable frequency speed control |
| fish cooker | φ426×4000 The main shaft of the equipment is made of φ273×10 seamless steel pipe, the inner cylinder is made of Q345 carbon steel with the thickness of 10mm, the outer jacket of the equipment is made of Q235 carbon steel with the thickness of 8mm, and the outer insulation is made of stainless steel 304 with the thickness of 0.7mm. | 1 | 2.2 Variable frequency speed control |
| screw press | φ245×1200 The barrel body is made of seamless steel pipe punching, the spiral blade is 12mm thick, and the screen is made of 304 stainless steel; the outer cover and the bottom water receiving tank is made of 304 stainless steel plate, thickness 1.2mm. | 1 | 4 Variable frequency speed control |
| fish meal dryer | φ820×4000 the main shaft of the equipment adopts φ273×16 seamless steel pipe, the inner cylinder is made of Q345 carbon steel, thickness 10mm, the outer jacket of the equipment is made of Q235 carbon steel, thickness 8mm, the jacket and the shaft and the coil are filled with steam heat, the outer insulation is made of stainless steel 304, thickness 0.7mm; V=20 rev/min, with rotary joint and steel wire hose. | 1 | 7.5 |
| screw conveyor connected to dryer | φ200×4000 The shell is all made of SUS304 stainless steel, δ=3mm, the blade is made of SUS304 stainless steel, δ=4mm; the spindle is made of Φ76X10 seamless steel pipe, material carbon steel. Exterior size: 4.5×0.3×0.3m. | 1 | 1.5 |
 fish oil sedimentation tank | Volume 0.5m³ Material: carbon steel δ=3mm | ||
| oil-water separation storage tank | Φ1200×2000 Static separation of fish liquid oil and water, improving fish oil separation effect and quality. The parts in contact with materials are made of Q235B carbon steel. The outer half pipe is filled with steam to heat the oil and water to speed up the oil-water separation. Outline size:1.3×1.3×2.5m. With gear pump 2.2kw. | 1 | 2.2 |
| cyclone dust collector | Φ600×1500, δ=2.0mm, material： SUS304 | 1 | |
| stainless steel induced draft fan y6-41 type | Φ200×1.2 304 stainless steel exhaust pipe. The length of the pipe is about 12 meters. | 1 | 1.5 |
| Instruments, valves | hut-off valves, pressure gauges, rotary joints, steel wire hoses, etc. | 1 | |
| electrical control cabinet | connect the equipment with the wires and cables to the control cabinet Electrical components adopt Chint, with reliable performance. Electrical control box operation indicator. | 1 |
Auxiliary equipment
If you buy the 5T/24h compact fish meal plant, We can support you with power, valve, instrument, electric heat pipe, temperature control instrument, starting device, heat carrier,heat-conducting oil 320#, high oil storage tank, low oil storage tank.
The mode of transportation
We can assist with shipping to your location.
The way of installation
If you buy our fish meal making machine, we will dispatch skilled technicians to your local site to guide the installation. We can also instruct workers on how to run the equipment and how to maintain it.
500kg/h fish meal processing machine put into production in Libya
The Libyan customer initially planned to produce about 10 tons of fishmeal per day, but he also indicated that his investment amount was not high. So, We recommended a 500 kg/h fish meal production plant based on his budget and the actual situation of his plant. Finally the customer gladly accepted our proposal.
